Light & Camera Tower
Light & Camera TowerATR LCT10
Nine metres of light and 360° of camera coverage, towed to wherever the shift moves next.

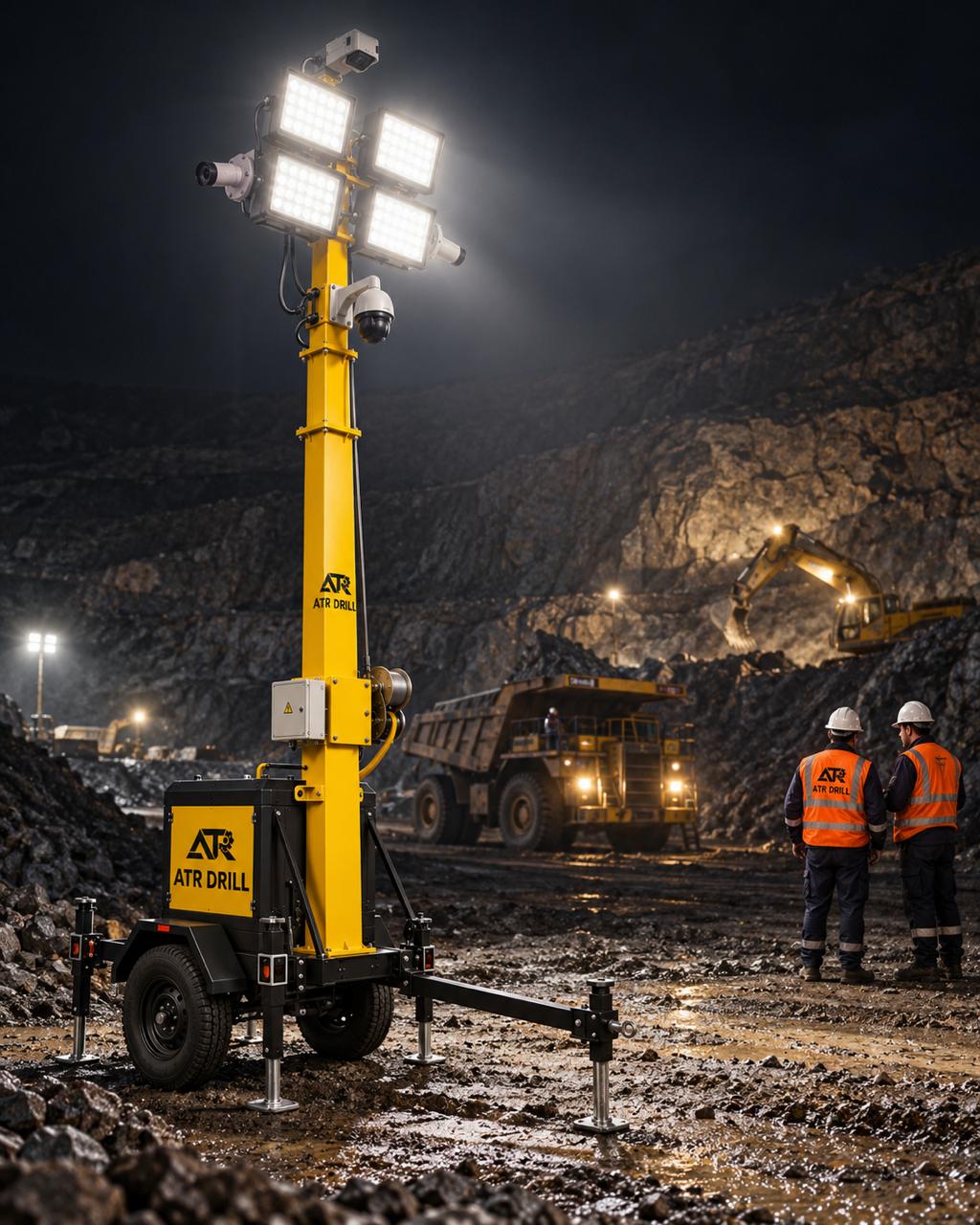

When the work doesn't stop at sunset, the ATR LCT10 puts 24,000 lumens and four surveillance cameras nine metres above your site — running on its own Kirloskar 5.5 kVA generator, with no site power and no scaffolding required.
24,000 Lumens Where You Need It
Four Bajaj 200 W LED floodlights, independently aimed, throw even light across a working face instead of a single hot spot — enough for a full night shift to run at daytime pace.
Four Cameras, Full 360°
Four cameras mounted at mast height cover the site in every direction. Supervision, incident review and perimeter security come from the same unit that lights the ground.
Tow It, Level It, Raise It
A three-wheel trolley with five jacks, wheel chocks and 13-inch rims moves the tower behind any site vehicle. A manual winch takes the mast to full height without hydraulics to service.
Lighting and Site Surveillance in One Towable Unit
Most sites solve night work twice — a light tower from one supplier, a camera pole from another, two deliveries, two power sources, two things to move when the face advances. The ATR LCT10 collapses that into a single trailer-mounted unit that lights the ground and watches it at the same time.

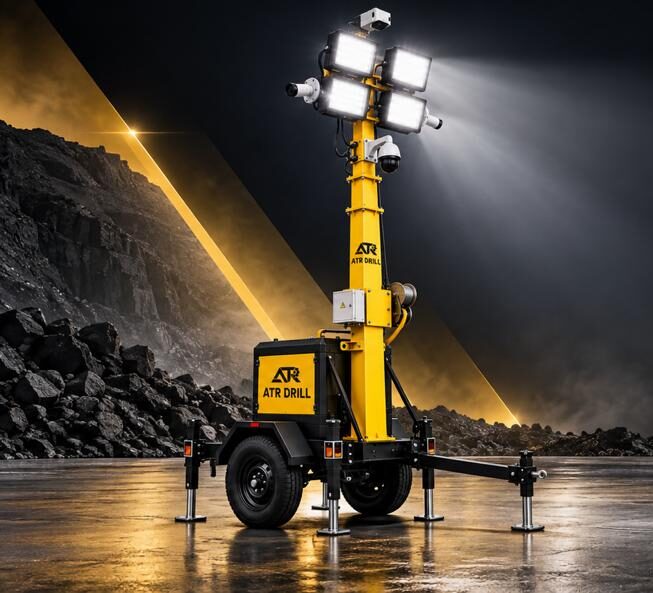

The 9-metre mast is raised by manual winch and carries four 200 W LED floodlights alongside four cameras giving complete 360° coverage. Power comes from an onboard Kirloskar 5.5 kVA diesel generator, distributed through a 4 + 1 MCB control panel so each lamp can be switched independently. Built for mining, quarrying, construction and infrastructure sites across the UAE and the wider Gulf, and supported by ATR Drill's own service and spares network.
ATR LCT10 Specifications
Every unit ships to the same build. Full specification below; the printable spec sheet is available on request.
One Mast. Every Direction.
Height is what makes the difference. At nine metres the light clears haul trucks, stockpiles and rig masts instead of being blocked by them, and the four cameras see over the same obstructions.
One LCT10 placed centrally does the work of several ground-level floodlights and a separate camera pole — one delivery, one generator, one thing to move when the face advances.
From Towed to Lit in Four Steps
No hydraulic pack, no external power, no lifting equipment. One operator, four steps.
-
01
Tow
Hitch the trolley to any site vehicle and move the unit into position. Two 13-inch wheels, wheel chocks included.
-
02
Stabilise
Deploy the five jacks and level the trolley on uneven ground. Chock the wheels before the mast goes up.
-
03
Raise
Winch the mast to its full nine metres by hand. Nothing to plug in, nothing hydraulic to service.
-
04
Light & Monitor
Start the generator, switch lamps individually from the 4 + 1 MCB panel, and bring the four cameras online.
Built for the Sites We Already Supply
The LCT10 was specified around the conditions ATR Drill equipment already runs in — dust, heat, uneven ground and no grid connection.
Open-Pit Mining
Light the working face and haul roads so night production runs at the same rate as day shift.
Quarrying & Blasting
Illuminate and monitor exclusion zones before and after a shot, then move the unit with the face.
Road & Highway Works
Night closures where the lighting has to relocate with the works at the end of every shift.
Piling & Foundation Sites
Rig-side lighting for cage placement and pours that carry on well past sunset.
Water Well & Remote Camps
Self-powered light and surveillance where there is no grid connection at all.
Security & Perimeters
Deterrent lighting plus recorded 360° coverage on unmanned sites and compound boundaries.
Backed, Not Just Delivered
1-Year DG Warranty
The Kirloskar 5.5 kVA generator carries a one-year warranty direct from Kirloskar.
2-Year Light Warranty
Two years of cover on the four-lamp LED floodlight array.
ATR Service & Spares
Parts, servicing and technical support from our Dubai office, alongside the drilling equipment you already run.
ATR LCT10 — Frequently Asked
How high does the ATR LCT10 tower extend?
The mast raises to 9 metres and is operated by a manual winch, so no hydraulic system or external power is needed to deploy it.
How much light does it produce?
Four Bajaj 200 W LED floodlights deliver a combined 24,000 lumens. Each lamp is switched independently from the 4 + 1 MCB control panel, so you can run partial output when full site lighting isn't needed.
Does it need a site power supply?
No. The unit carries its own Kirloskar 5.5 kVA diesel generator and runs completely independently, which makes it suitable for remote sites with no grid connection.
What do the cameras cover?
Four cameras are mounted on the mast to give full 360° coverage of the surrounding site, at the same height as the lighting array — so they see over haul trucks, stockpiles and plant rather than being blocked by them.
How is the tower moved between locations?
It sits on a three-wheel trolley with two 13-inch wheels, five stabilising jacks and wheel chocks, and can be towed behind a standard site vehicle.
What warranty is included?
The Kirloskar generator is covered for one year by Kirloskar, and the LED lighting array carries a two-year warranty. ATR Drill supports both from our Dubai office.
